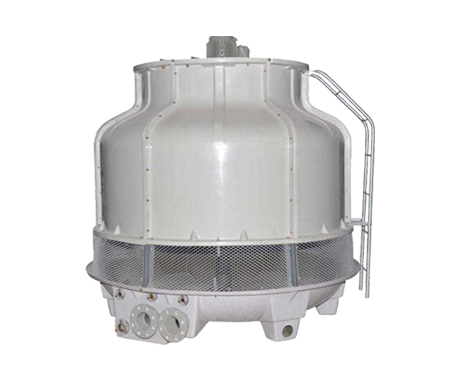

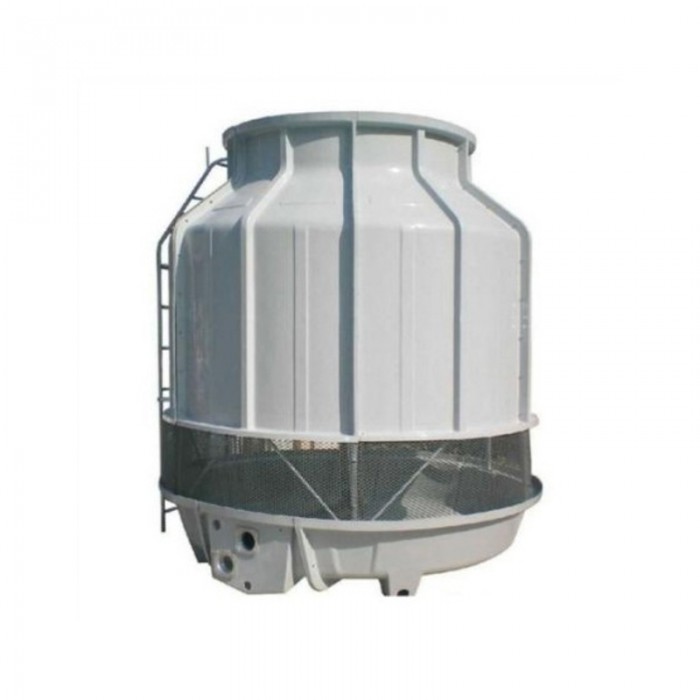

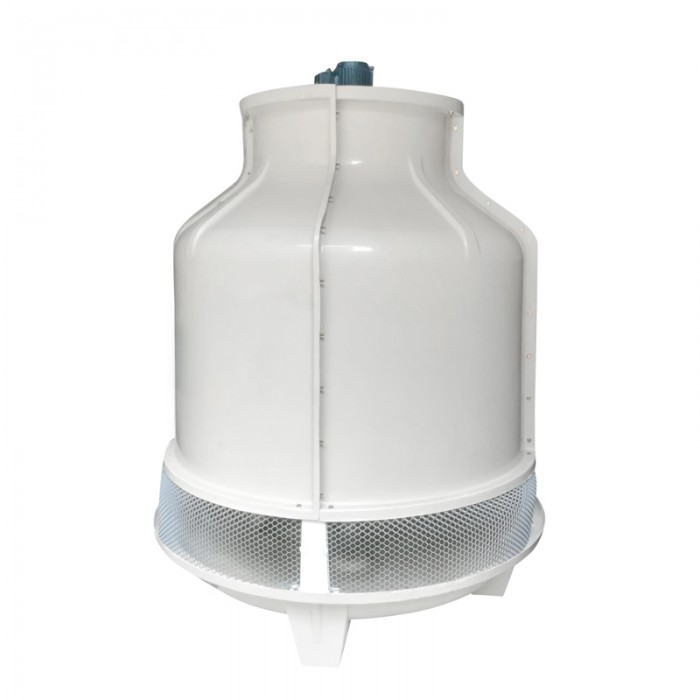

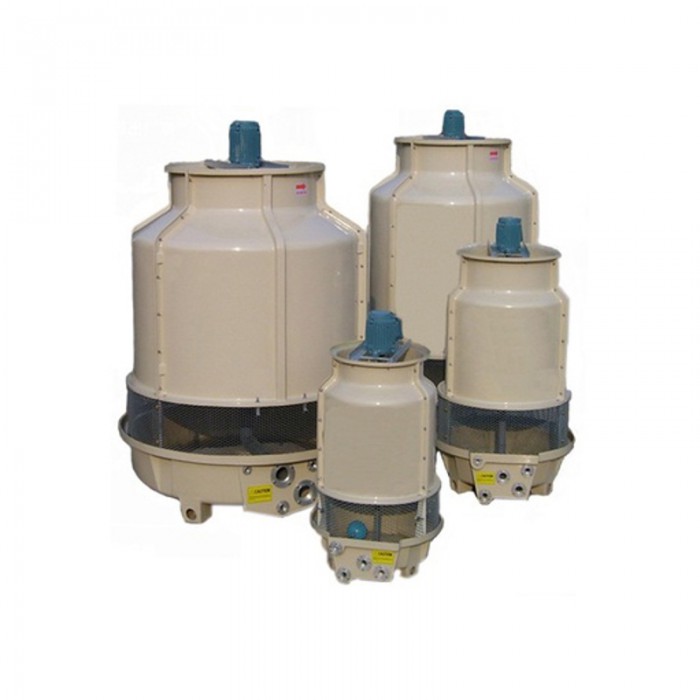

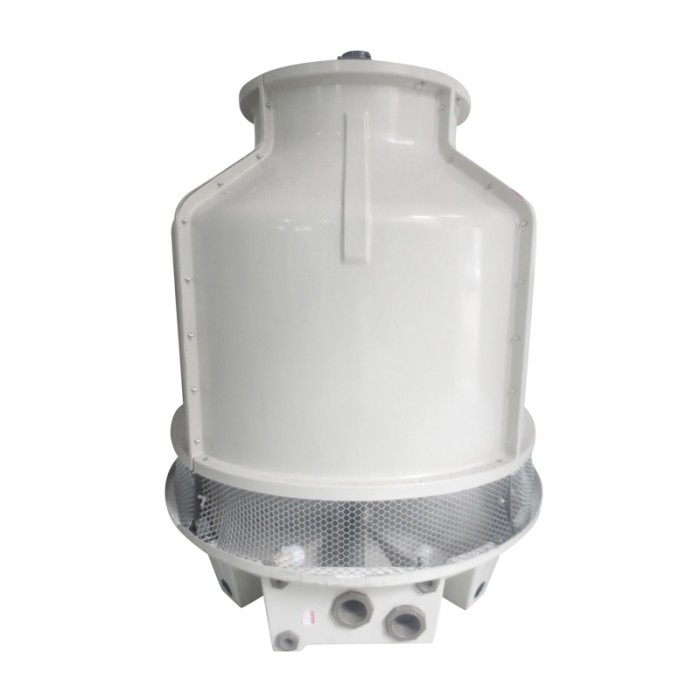

High quality with low noise water cooling tower

Injection Molding Cross Flow Closed Weight Of Water Cooling Tower

Cooling tower is mainly used for cooling in air conditioning cooling, freezing, plastic chemical, injection molding, leather, foam, power generation, steam turbine, aluminum processing, air compressors, industrial cooling water and other fields,

Working principle

1, Working fluid (water, oil or other liquid) flowing inside of the coils, which is enwrapped by spray water on the outside. The heat of water is transferred by the coil and become the saturated vapor when meeting the water and air.
2, the heat is exhausted out of the tower by the tower by the top fan; water is collected back to the bottom tank and circulates continuously. The spray water is cooled down via PVC radiation fin in the process of circulation, and flow is the same direction with the fresh wind. The coil mainly takes sensible heat travel style.
3, the most benefit of this style is can avoid scale formation on the outside of the coil. And this will apply specially to dealing with high-temperature fluid (e.g. 60°C) or the fluid need big temperature difference (e.g. 60°C to 32°C).

Main Features

Low-noise control principle
Lowering noise from the sound source. The special power machine is filled closed automatic cooling type low-noise cooling tower. Such kind of machine is good at water-proof performance, low in noise.

1.Low-speed fan to avoid excessive mist into the air.

2.FRP body contains stable materials resisting ultraviolet radiation with a long service life.
3.Filled with round counterflow model film.
4.Rotating pipe distributing model.
5.The structure contains rust-removing and high-strength galvanized steel which can bear corrosion and can be easily assembled.
6.Different types(standard, low-noise, high-temperature and industrial type) to meet your needs.

FAQ

How about the quality of your product?

Our products manufactured strictly according to national and international standard.

We have CE, ISO certification.

We take a test on every product before delivery.

How about the price of this product?

We can give the lowest price than market one.
We do quotation as soon as possible for any customer.
Discount can be given according to quantity.

What is the MOQ?

1 set.

If you can be customized?

We can make products according to customer's requirements.

What is the voltage?

380V 50hz 3 phase; any other voltage according to client's requirement.

Cooling tower technical parameter sheet:

Round Cooling tower HX-10 to HX-500 Technical Parameters
Model				HX-10	HX-15	HX-20	HX-25	HX-30	HX-40	HX-50	HX-60	HX-80	HX-100
Water flow			m³/h	7.8	11.7	15.6	19.5	23.4	31.2	39.2	46.8	62.4	78.1
Dimension	Tower height		mm	1650	1750	1770	1870	1870	1980	2020	2150	2260	2400
Dimension	Max outer dia.		mm	1060	1060	1170	1400	1650	1650	1830	2100	2100	2700
Fan	Diameter		mm	600	600	600	770	770	770	930	1170	1170	1450
Air volume			m³/h	5200	8400	9650	12000	16000	18800	24000	30000	38000	48000
Motor power			kw	0.18	0.18	0.37	0.55	0.55	0.75	1.5	1.5	1.5	2.2
Current	Standard		I(A)	0.75	0.75	1.25	1.75	1.75	2.3	4.5	4.5	4.5	5.8
Current	Low noise		I(A)	0.9	0.9	1.55	2.1	2.1	2.7	5.5	5.5	5.5	7.7
Weight	Standard	Dry	kg	50	60	80	98	116	150	210	260	290	550
	Standard	Wet	kg	195	298	320	500	530	590	1050	1280	1410	1650
	Low noise	Dry	kg	60	71	103	114	130	164	225	277	315	572
	Low noise	Wet	kg	215	318	343	524	554	613	1085	1317	1440	1723

Model No				HX-125	HX-150	HX-175	HX-200	HX-225	HX-250	HX-300	HX-350	HX-400	HX-500
Water flow			m³/h	97.5	117	136.8	156.2	175.5	195.1	234	273.2	312.1	392.4
Dimension	Tower height		mm	2400	2550	2750	2750	3620	3620	3680	3680	4070	4070
Dimension	Max outer dia.		mm	2700	3000	3300	3300	4100	4100	4640	4640	5500	5500
Fan	Diameter		mm	1450	1450	1750	1750	2100	2100	2400	2400	2700	2700
Air volume			m³/h	48000	70200	83000	93600	105300	117180	140400	164050	187000	195000
Motor power			kw	2.2	2.2	4	4	5.5	5.5	7.5	7.5	11	11
Current	Standard		I(A)	5.8	5.8	8.8	8.8	12.6	12.6	17	17	23.8	23.8
Current	Low noise		I(A)	7.7	7.7	8.8	8.8	12.6	12.6	17	17	23.8	23.8
Weight	Standard	Dry	kg	580	600	860	880	1100	1200	1820	1900	2840	2900
	Standard	Wet	kg	1700	1750	1960	1980	2870	2950	4050	4250	5740	5800
	Low noise	Dry	kg	572	635	900	915	1236	1320	1895	2050	2965	2965
	Low noise	Wet	kg	1775	1850	2060	2120	3000	3071	4275	4470	5950	6010
Remark:	1. Cooling conditions for above specifications: inlet water temperature 37°C, outlet 32°C, ambient temperature:wet-bulb 27°C.
Remark:	2. The above specification change due to product improvement, without prior notice. Please contact us before order if you have special requirements .

• The following instructions should be read carefully before the unit is installed to avoid unnecessary damage.

• The unit should be kept as level as possible when handling and moving, never tilted more than 30 degrees, and there should be support rods on all spreaders to avoid injuring the equipment.

• The unit can be installed on the roof or outdoor patio, and the supporting surface must be strong enough; it can withstand the weight of the unit during operation.

• The unit should not be installed in dusty, dirty, corrosive gas and humidity.

• The installation of the unit should leave enough space of more than 1.5 meters in front, back, left and right for heat dissipation and easy access for maintenance personnel.

• The set in place, should be shockproof cushion placed under the set of bottom frame, adjust the level of the set before tightening the foot screws and ambrose.

• System plumbing installation, insulation, should be designed by professionals to guide, and the implementation of the corresponding provisions of the HVAC installation specifications.

• External water piping system must be installed anti-vibration soft joints, filters, check valves, drain valves, exhaust valves, shut-off valves; such as expansion tanks should be installed above the highest part of the system 1-1.5 meters; tank capacity of about the entire system of water / 10: Exhaust valves should be installed in the highest part of the system between the expansion tanks; chilled water piping system and expansion tanks should be made thermal insulation.

• Water pumps and units, water pumps and system water piping should be connected using shockproof flexible joints, while the piping and pumps should be self-supporting brackets to avoid unit stress.

• In order to prevent welding slag and other foreign objects from entering the evaporator and causing damage to the heat exchanger tube, we are required to install a water filter of more than 16 mesh at the evaporator inlet of the unit (or at the tank refill inlet). System water pipeline flushing and insulation should be carried out before connecting with the unit, it is strictly prohibited to connect the pipeline with the unit before it is flushed clean, and lightning protection should be considered according to the height of the actual installation location of the unit.

Instructions for use

Before the user starts the machine for the first time, please read the instruction manual of the product carefully and operate the machine according to the steps stipulated in the instruction manual to ensure the safety; meanwhile, it is recommended to start the machine for the first time under the guidance of the company's commissioning engineers.

The following work must be done before starting operation

• Connect all the power supply cables and external power supply control equipment according to the requirements.

• Check the water source of water tank or expansion tank, open the exhaust valve, exhaust the air in the channel; check whether the compressor and fan or water pump running direction is correct.

• The unit will be energized in order to warm up the lubricating oil (especially in cold areas, the time is not less than 12 hours)

In case of air-conditioning system, check whether the terminal equipment operates normally.

• In the case of the main circuit power failure, carry out a test run to check whether the sequence of action is normal; check whether the compressor and fan or pump group running in the right direction

• Set industrial refrigeration (or heat pump) operation mode as needed.

After the completion of the above work, you can turn on the main power and open the chiller or air-conditioning system for the host; to be the water temperature to meet the requirements of the normal unit once the debugging is completed and put into normal operation, you must keep its power supply phase sequence unchanged.

Maintenance

• The unit has been adjusted by the company's commissioning engineers, has reached the best working condition, please do not self-adjustment.

• The unit must clean the filter at the water inlet end of the pump after 24 hours of trial operation.

Frequent operation of the switch is strictly prohibited, the number of compressor start-up shall not exceed 6 times / hour. And the interval between each start-up operation should be more than 5 minutes.

• The main circuit power switch can not be disconnected during normal use.

• The whole machine should be checked once a month, the items are:

1, electrical terminals solid bolts have no loosening.

2, the set of moving parts have no noise, whether the operation is normal.

3, each motor running current is normal, insulation resistance is normal.

• The heat exchanger of the unit should be cleaned at least twice a year with special cleaning liquid or high-pressure water to maintain good heat exchange effect.

• If the heat pump unit is turned on in winter, please pay special attention to: the temperature is below 0°C to check the circulating water insulation effect regularly. And can not cut off the unit inlet power; long-term shutdown when not in use, the water side of the heat exchanger and the system piping must be drained to avoid pipe freezing.

• The unit should be operated and managed by specialized personnel, and should be shut down in time to find out the reasons and troubleshooting when abnormal conditions are found. It is strictly prohibited to run with disease.

• If you encounter any difficulties that can not be solved, please feel free to contact the company's customer service center. Warning: In order to ensure the normal use of your unit, please follow the following tips during the use of (winter, spring): 1. Frequent shutdown, the unit's main power switch and the single-pole air switch in the electronic control box must be kept closed and energized.

2. When the ambient temperature is low, the water temperature is correspondingly low and there is a danger of freezing, the unit will automatically start the anti-freezing program to prevent the occurrence of the accident, but at this time, if you turn off the water pump and the unit power supply, then the anti-freezing program fails, the water temperature will continue to fall to the point that the water system is frozen or even frozen heat exchanger pipe, etc. In order to avoid such accidents, please you must do the following two:

1, the water pump must be linked with the unit, the unit to control the start and stop of the water pump, rather than manual control.

2, the pump and unit main circuit and control loop must be kept energized, if you can not keep the energized state. It is necessary to release the water in the water system in time.

The company's products in the installation and commissioning, if the user needs, can first communicate with the company's technical staff to confirm the site service.

Our company follows the principle of continuous product improvement, it may be difficult to notify you of some improvements and changes in product specifications, performance and materials, please understand.
