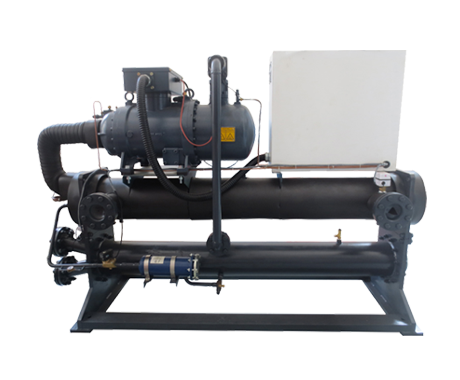

Industrial chiller water cooled screw chiller HX-100SLD, with semi-hermetic screw type compressor, it's a low temperature chiller, cooling capacity is 91KW-143KW.
Product description
HX series screw type water cooled screw chillers are widely used in plastic, electroplating, electronics, chemical, pharmaceutical, printing, food processing and other various industrial refrigeration process need to use chilled water areas. Only the highest quality materials used and that made by workers with the most experience and knowledge in the industry. Simple in structure convenient operation and installation, stable quality and longer service life.
Water cooled screw chiller can be divided into two types: single-screw chillers and double-screw chillers and select the most efficient semi-enclosed compressor unit’s heart - high quality imported screw compressor, its 5:6 ultra -efficient helical rotor compressor is 20%~30% better than the general compressor unit. reliable operation, high efficiency, easy maintenance, accurate control and wide application range. The whole machine controls the temperature accurately. Units PLC controller uses large-screen touch LCD to display, and has a good all-Chinese man-machine dialogue interface to realize fully automatic control. The liquid crystal display screen displays the working condition of the machine in real time and precisely monitors the unit running in the best condition, its contact panel is well sealed, waterproof, dustproof, anti-corrosion, long key life.
HX Medium and low temperature chiller integrating with the essence of similar products at home and abroad. Adopt advanced production technology. Excellent quality, compact
structure, nice appearance. Under heat load size to use single or double compressor design. The refrigeration range is 37200Kcal/H ~72200Kcal/H (30HP-180HP), can cooling water temperature to -15~-35 ℃, Available glycol aqueous solution or calcium chloride,
sodium chloride brine solution as refrigerant medium, the pressure control and safety valve device of cooling system to ensure work safety. Unit has passed the professional running tests in the factory. Low temperature chiller is widely used for food processing, chemical industry, cold storage and various special requirements of industrial, commercial cooling system at low temperature.
Features
1. Compact structure, smooth operation
The condenser, dry evaporator all adopt efficient heat pipe. The host is imported high efficient semi-closed double screw compressor. With compact structure, small volume, light weight, stable performance, low noise, small vibration, and many other advantages.
2. Perfect capacity control system
The capacity control system is divided into 4 levels, adjustable between 100%,75%,50%,25%, 0%. Automatically adjust the unit start-stop according to the load changes, that more energy saving.
3. Refrigeration system run independently
With two or more independent cooling circuits, even if a circuit failure or maintenance, another loop can run normally. Especially suitable for the industrial which work on 24hours.
4. Easy operation.
The operating state of screw water chillers is display on screen at any time, there are two way to be clear at a glance by graphics and text form parameters.
5. The protective function which with microcomputer controller.
Adopt microcomputer and programmable controller (PLC in Chinese or English), touch screen display, select the operation according to the menu, direct finger touch screen display button to start the various protection functions
6. Multiple protection, safe and reliable
In addition to the compressor internal protection module provides super under-voltage, lack of phase, overload and so on protections, Pressure control device of cooling system can make perfectly safe work for the unit.
7. Easy to install and use
All unit have been tested and check safety control devices before ship, with full refrigerant. Just need connect water pipe and circuit by the end user for putting into use, that minimize the time for installation and commissioning.
Advantages
1. We are the professional manufacturer of industrial chiller with OEM & ODM services, with more than 15 years of experience on industrial water chiller and provides professional reliable and economical cooling solution to customers.
2. Professional and experienced technician & sales team service to the oversea market, offering professional solution according to requirements.
3. Stable quality, fast delivery, reasonable price, strong tech support. Some air-cooled chillers in stock for immediately delivery.
4. Stable staffs can ensure stable and high-quality productivity. To ensure high quality service and efficient after-sales support.
5. Steps quality control: incoming quality control, process quality control, outgoing quality control.
6. Passed ISO9001 international quality certification system; Have CE certification for main products.
7. Service call response within 1 hour, solution offered within 24hrs.
Explosion-proof low-temperature chiller technical parameter sheet:
| Model | HX-100SLD | HX-120SLD | HX-140SLD | HX-150SLD | HX-180SLD | HX-200SLD | |
| Refrigerant | R22 | R22 | R22 | R22 | R22 | R22 | |
| Cooling capacity (kw) | ﹣10℃ | 143 | 186 | 226 | 237 | 284 | 294 |
| ﹣15℃ | 115.0 | 150 | 182 | 190 | 228 | 236 | |
| ﹣20℃ | 91 | 119 | 144 | 151 | 181 | 188 | |
| Input power | kw | 72.0 | 86 | 105 | 108 | 128 | 133 |
| Current | A | 129 | 154 | 189 | 194 | 230.0 | 239 |
| Power supply | 3Phase 380V 50Hz (60Hz) | ||||||
| Temperature control range | 5~35℃ | ||||||
| Temperature control accuracy | ±1℃ | ||||||
| Capacity control | 0%,25%,50%,75%,100% | ||||||
| Compressor | Type | Semi-hermetic single-screw type | |||||
| Power(KW) | 72.0 | 86 | 105 | 108 | 128 | 133 | |
| Current | 129 | 154 | 189 | 194 | 230.0 | 239 | |
| Condenser | Type | Shell and tube type | |||||
| Pipe diameter (inch) | 4" | 5" | 6" | ||||
| Cooling water flow(m³/h) | 57.0 | 70.0 | 80.0 | 70.0 | 95.0 | 110.0 | |
| Water pressure drop(kpa) | 85.0 | 88.0 | 90.0 | ||||
| Evaporator | Type | Shell and tube type | |||||
| Pipe diameter (inch) | 4" | 5" | 6" | ||||
| Chilled water flow(m³/h) | 60.0 | 66.0 | 72.0 | 78.0 | 84.0 | 90.0 | |
| Water pressure drop(kpa) | 85.0 | 88.0 | 90.0 | ||||
| Running noise (dB) | 92 | ||||||
| Safety device | Compressor inner protection, over current protection, high/low pressure protection, over temperature protection, flow rate protection, phase sequence/phase missing protection, low level coolant protection, anti freezing protection, exhaust overheat protection, safety valve, overload protection, under voltage, over voltage etc. | ||||||
| Dimension | L(mm) | 2300.0 | 2400.0 | 2500.0 | 2650.0 | 2650.0 | 3500.0 |
| W(mm) | 1150.0 | 1200.0 | 1250.0 | 1400.0 | 1400.0 | 1360.0 | |
| H(mm) | 1650.0 | 1700.0 | 1850.0 | 1950.0 | 2100.0 | 1900.0 | |
| Total weight | KG | 2400.0 | 2600.0 | 2650.0 | 2750.0 | 3600.0 | 3800.0 |
| Remark: The above specifications are according to the following design conditions: 1. Chilled water inlet and outlet temperature is designed by 5℃ temperature difference, condensation temperature is calculated by 35℃; Refrigerant R-22 or R-404A + economizer operation mode; 2. Control system design for computer control system, touch screen, PLC programmable system, with RS485 communication; 3. The design pressure of chilled water side and cooling water side of the standard model is 1.0mpa; Container pressurized equipment (special ordering machine) applicable design pressure: 1.6mpa cooling water side, 1.0mpa frozen water side; 4. The main power supply: 3 phase 380V 50Hz; Operation power: single-phase 220V 50Hz; When ordering non-standard power supply, please apply in advance. | |||||||
• The following instructions should be read carefully before the unit is installed to avoid unnecessary damage.
• The unit should be kept as level as possible when handling and moving, never tilted more than 30 degrees, and there should be support rods on all spreaders to avoid injuring the equipment.
• The unit can be installed on the roof or outdoor patio, and the supporting surface must be strong enough; it can withstand the weight of the unit during operation.
• The unit should not be installed in dusty, dirty, corrosive gas and humidity.
• The installation of the unit should leave enough space of more than 1.5 meters in front, back, left and right for heat dissipation and easy access for maintenance personnel.
• The set in place, should be shockproof cushion placed under the set of bottom frame, adjust the level of the set before tightening the foot screws and ambrose.
• System plumbing installation, insulation, should be designed by professionals to guide, and the implementation of the corresponding provisions of the HVAC installation specifications.
• External water piping system must be installed anti-vibration soft joints, filters, check valves, drain valves, exhaust valves, shut-off valves; such as expansion tanks should be installed above the highest part of the system 1-1.5 meters; tank capacity of about the entire system of water / 10: Exhaust valves should be installed in the highest part of the system between the expansion tanks; chilled water piping system and expansion tanks should be made thermal insulation.
• Water pumps and units, water pumps and system water piping should be connected using shockproof flexible joints, while the piping and pumps should be self-supporting brackets to avoid unit stress.
• In order to prevent welding slag and other foreign objects from entering the evaporator and causing damage to the heat exchanger tube, we are required to install a water filter of more than 16 mesh at the evaporator inlet of the unit (or at the tank refill inlet). System water pipeline flushing and insulation should be carried out before connecting with the unit, it is strictly prohibited to connect the pipeline with the unit before it is flushed clean, and lightning protection should be considered according to the height of the actual installation location of the unit.
Instructions for use
Before the user starts the machine for the first time, please read the instruction manual of the product carefully and operate the machine according to the steps stipulated in the instruction manual to ensure the safety; meanwhile, it is recommended to start the machine for the first time under the guidance of the company's commissioning engineers.
The following work must be done before starting operation
• Connect all the power supply cables and external power supply control equipment according to the requirements.
• Check the water source of water tank or expansion tank, open the exhaust valve, exhaust the air in the channel; check whether the compressor and fan or water pump running direction is correct.
• The unit will be energized in order to warm up the lubricating oil (especially in cold areas, the time is not less than 12 hours)
In case of air-conditioning system, check whether the terminal equipment operates normally.
• In the case of the main circuit power failure, carry out a test run to check whether the sequence of action is normal; check whether the compressor and fan or pump group running in the right direction
• Set industrial refrigeration (or heat pump) operation mode as needed.
After the completion of the above work, you can turn on the main power and open the chiller or air-conditioning system for the host; to be the water temperature to meet the requirements of the normal unit once the debugging is completed and put into normal operation, you must keep its power supply phase sequence unchanged.
Maintenance
• The unit has been adjusted by the company's commissioning engineers, has reached the best working condition, please do not self-adjustment.
• The unit must clean the filter at the water inlet end of the pump after 24 hours of trial operation.
Frequent operation of the switch is strictly prohibited, the number of compressor start-up shall not exceed 6 times / hour. And the interval between each start-up operation should be more than 5 minutes.
• The main circuit power switch can not be disconnected during normal use.
• The whole machine should be checked once a month, the items are:
1, electrical terminals solid bolts have no loosening.
2, the set of moving parts have no noise, whether the operation is normal.
3, each motor running current is normal, insulation resistance is normal.
• The heat exchanger of the unit should be cleaned at least twice a year with special cleaning liquid or high-pressure water to maintain good heat exchange effect.
• If the heat pump unit is turned on in winter, please pay special attention to: the temperature is below 0°C to check the circulating water insulation effect regularly. And can not cut off the unit inlet power; long-term shutdown when not in use, the water side of the heat exchanger and the system piping must be drained to avoid pipe freezing.
• The unit should be operated and managed by specialized personnel, and should be shut down in time to find out the reasons and troubleshooting when abnormal conditions are found. It is strictly prohibited to run with disease.
• If you encounter any difficulties that can not be solved, please feel free to contact the company's customer service center. Warning: In order to ensure the normal use of your unit, please follow the following tips during the use of (winter, spring): 1. Frequent shutdown, the unit's main power switch and the single-pole air switch in the electronic control box must be kept closed and energized.
2. When the ambient temperature is low, the water temperature is correspondingly low and there is a danger of freezing, the unit will automatically start the anti-freezing program to prevent the occurrence of the accident, but at this time, if you turn off the water pump and the unit power supply, then the anti-freezing program fails, the water temperature will continue to fall to the point that the water system is frozen or even frozen heat exchanger pipe, etc. In order to avoid such accidents, please you must do the following two:
1, the water pump must be linked with the unit, the unit to control the start and stop of the water pump, rather than manual control.
2, the pump and unit main circuit and control loop must be kept energized, if you can not keep the energized state. It is necessary to release the water in the water system in time.
The company's products in the installation and commissioning, if the user needs, can first communicate with the company's technical staff to confirm the site service.
Our company follows the principle of continuous product improvement, it may be difficult to notify you of some improvements and changes in product specifications, performance and materials, please understand.
