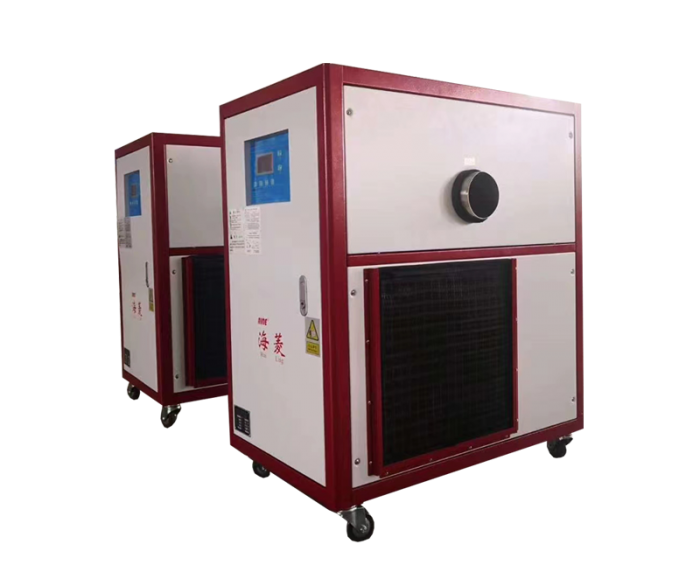

Industrial chiller specializing in medicine, plastic absorption, chemical industry, electronics, food, injection molding and other a low-temperature cold air unit, can be directly from the unit to provide cold air, with a beautiful appearance, small size, excellent performance, reliable quality, price and other advantages of the economy, air-cooled water-cooled industrial chiller with the upper blowing and the lower blowing of the wind two types of models (the specific location of the outlet can be based on the requirements of users as well as the user's use of specific requirements of the product), processing air volume from 100m3 / h / h ~ 3000m3 / h, air pressure up to 200-1200pa or even higher, air temperature -25 - +8 ℃. The air-cooled water-cooled industrial chiller has two types of models: up-blowing and down-blowing (the position of the air outlet can be determined according to the user's requirements and the specific requirements of the products used by the user), and the handling air volume ranges from 100m3/h/h~3000m3/h, the air pressure can be 200-1200pa or even higher, the air temperature can be from -25 to +8℃, and the air velocity can be up to 32m/s, which can basically satisfy the requirements of the chiller for all kinds of industrial products.

Characteristics of products

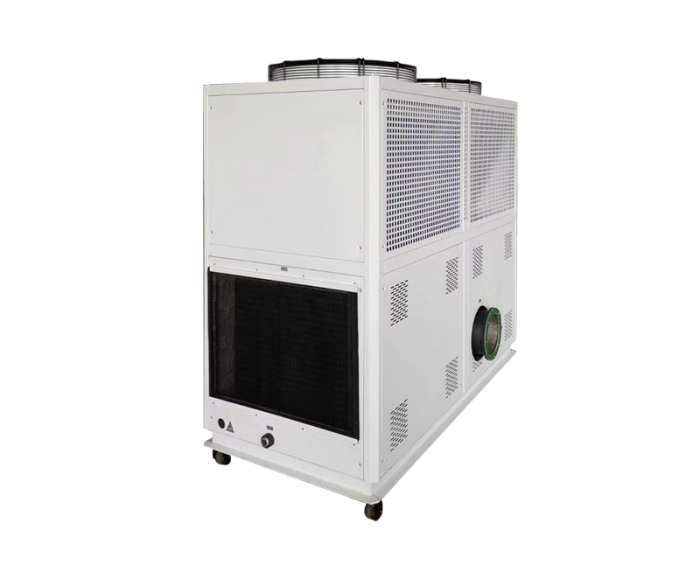

Air-cooled, water-cooled scroll air-conditioning unit Huaxiang refrigeration market application has been more than 15 years, adapted to the production workshop or need to cool down the site environment, do not need a special room and can also be equipped with water-cooled, but need to be cooled by the cooling tower device. The product absorbs the essence of similar products at home and abroad, focusing on the future development of industrial refrigeration and molding quick cooling products to serve customer needs. This cold air unit over the years has been widely used in industrial refrigeration, plastic, extrusion molding and so on.

According to the special needs of the environment, we can provide standard, salt-resistant, corrosion-resistant and other specifications to meet the different requirements of use in harsh environments.

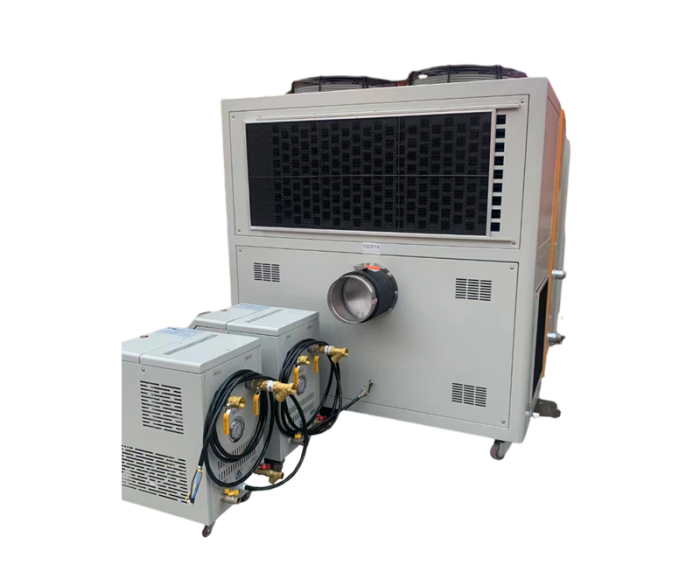

Precision Cold Air Unit

Each unit can be designed for assembly line installation, and the unit startup adopts graded startup, which reduces the startup current of the unit, minimizes the impact on the power grid, and ensures the safety of the production demand and other power-using equipments in the same area or product.

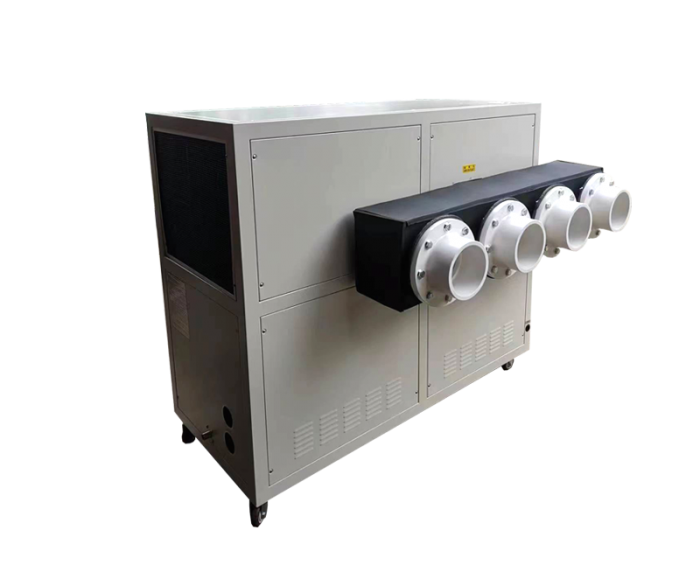

Flexible application

A single air-conditioning unit has a system that automatically calculates the operating load, matches the operating air volume, and humanely distributes the temperature demand of each product to ensure that the system maintains the optimal operating state and improves the reliability and efficiency of the unit. The air temperature can be adjusted, and dehumidification is required in the low-temperature section.

High-efficiency and energy-saving heat exchanger

This series of scroll chiller, air-cooled type adopts new optimized design of V-fin heat exchanger, water-cooled type adopts shell and tube heat exchanger, using CFD simulation to simulate the wind field, optimize the V-type angle, more in line with the characteristics of the air flow, the airflow organization is more uniform, heat transfer is sufficient, efficiency increased by 30%, while reducing the compressor consumption loss. Embedded triangular structure characteristics, can effectively improve the overall structural strength of the equipment, air cooler can also avoid the risk of heat exchanger surface damage. To protect the transportation and installation process equipment safety.

Perfect protection devices

The unit is equipped with more than 10 safety protection functions, all-round comprehensive protection to ensure the safe and stable operation of the unit and the system.

-Anti-freezing protection;

-Phase sequence protection of power supply;

-Compressor exhaust temperature protection;

-High and low voltage protection;

-Fan overload protection;

-Compressor overload protection;

-Circulating fan overload protection;

Convenient maintenance

Investment: easy system expansion, unit capacity increase at will, etc.

Transportation: small volume, high strength, can be transported independently, without large lifting equipment, self-prepared mobile casters.

Installation: only need to be installed in a well-ventilated place, no need for machine rooms and cooling towers, strong flexibility in installation space when multiple units are combined, and can be spaced at an appropriate distance when there is sufficient installation space to ensure that the basic maintenance space can be.

Maintenance: The relatively independent system design between each unit is convenient for maintenance.

Microcomputer precise control

The unit adopts microcomputer control system, large screen LCD text display friendly human-machine interaction page. Containing multi-level password protection to prevent wrong operation affecting system operation. The control system comes with self-starting function for incoming calls and optional timed start/stop function, which is convenient for customers to realize unattended schedule management function on site.

Power failure memory function

The unit can automatically memorize and store the data and operation status before power failure. When the power comes back, the unit will automatically return to the operation status before power failure without resetting, which is convenient for users to use and manage.

Intelligent control management

Optional RS-485 standard communication interface, built-in Modbus communication protocol, can be integrated with the equipment control system ( BAS ) to realize networking group control.

Scroll-type air-cooled chiller-air conditioner has been the best choice for air-conditioning system with small cooling capacity range due to its flexibility in equipment investment and simplicity in project installation. Huaxiang has profound technical application experience, with modern production technology, time-tested and reliable performance. Adoption of large angle optimized design external rotor fan, matching the best working speed, not only sufficient heat dissipation, but also lower airflow noise, improve the utilization rate of heat exchanger, to achieve the best energy efficiency of the whole machine;

High-efficiency scroll compressor

The unit adopts the international brand fully enclosed scroll compressor, the compressor adopts low-pressure chamber design, the system refrigerant circuit directly cools the compressor motor to ensure that the motor always maintains efficient and stable operation, and the compressed high-temperature and high-pressure refrigerant vapors are directly discharged from the compressor, which reduces the pressure and heat loss and improves the efficiency of the compressor.

Increased efficiency of subcooling degree

The air-side heat exchanger adopts counter-flow multi-row pipe design, which allows air to circulate on the heat exchanger piece for a long time and has a large heat exchange capacity, realizing a larger degree of subcooling and a more reliable performance of the unit.

Green environmental protection

Adopting conventional R22, R407C, etc. or internationally recognized environmentally friendly refrigerant R410A, with stable performance, non-toxic, no damage to the ozone layer, ODP (Ozone Depletion Potential) is zero.

High-precision throttling system

Thermal expansion valve or electronic expansion valve is chosen as the refrigerant control component, realizing PID precise throttling control, fast reaction and action speed, and dynamic adjustment of superheat. Smooth operation in the full range of working conditions minimizes the influence of variable environmental factors, and the unit is always in the optimal operating state of temperature and corresponding pressure.

Finned evaporator

The new high-efficiency spiral folded plate finned heat exchanger adopts a distributor to distribute liquid to ensure uniform distribution of refrigerant in the tube course, maximizing the use of heat exchange area and improving heat exchange performance by 10%. Adopting all-welding manufacturing process, high pressure strength, no leakage risk, resistant to dirty, blocking, freezing, high reliability.

Heat exchanger specifications - internal threaded copper tube

Both air-side heat exchanger and water-side heat exchanger are designed with advanced internal threaded copper tube, which not only increases the effective heat exchange area of the system, but also enhances the perturbation of the refrigerant, and improves the heat exchange efficiency by more than 30% compared with ordinary copper tube.

Temperature control

Fresh air unit can be as low as 7 degrees, circulation unit can be 0 degrees out of the temperature but need to defrost, such as the need for lower temperature cold air unit need to be added with dehumidification unit.

Industrial cold air unit technical parameter sheet:

Parameters / Model		HX-01FF	HX-02FF	HX-03FF	HX-04FF	HX-05FF	HX-07FF	HX-10FF
Cooling capacity	KW	2.8	5.6	7.4	11.2	14	19.6	28
Temperature range	3℃－Room temperature(Below 0 ℃ can be customized
Power supply	Voilt	1N-220V 50Hz/60Hz			3N-380V/415V 50Hz/60Hz
Refrigerant	R	R22/R407C/R410A/134A
Total input power	KW	0.94	1.73	2.57	3.48	4.31	7.65	9.9
Compressor power	KW	0.75	1.5	2.2	3	3.75	6	7.5
Cold wind	m³/h	180	280	370	510	800	1560	2300
Cold wind pressure	Pa	125	340	340	520	520	780	890
Fan power	KW	0.045	0.09	0.09	0.2	0.2	0.75	1.5
Cooling air flow	m³/h	1000	2000	3000	4000	5000	8000	10000
Fan power	KW	0.145	0.14	0.28	0.28	0.36	0.9	0.9
Diameter wind	MM	Φ76	Φ90	Φ100	Φ100	Φ125	Φ160	Φ159
Machine size	L/mm	680	800	940	940	1045	1330	1330
	W/mm	420	480	555	555	555	725	725
	H/mm	720	850	1060	1060	1160	1330	1330
Parameters Model		HX-12FF	HX-15FF	HX-20FF	HX-25FF	HX-30FF	HX-40FF	HX-50FF
Cooling capacity	KW	33.6	44	56.5	68	74	112	140
Temperature range	3℃－Room temperature(Below 0 ℃ can be customized
Power supply	3N-380V/415V 50Hz/60Hz
Refrigerant	R22/R407C/R410A/134A
Total input power	KW	11.4	13.7	18.8	22.59	28	36	46
Compressor power	KW	9	11	15	18.75	22	30	40
Cold wind	m³/h	2750	3360	4100	4400	5400	6900	7500
Cold wind pressure	Pa	1000	1000	1000	1000	1000	1000	1000
Fan power	KW	1.5	1.5	2.2	2.2	3	4	4
Cooling air flow	m³/h	12000	15000	20000	25000	32000	40000	50000
Fan power	KW	0.9	1.2	1.6	1.64	2.4	3.6	4
Diameter wind	MM	Φ159	Φ159	Φ200	Φ200	Φ250	Φ300	Φ300
Machine size	L/mm	1550	1550	1760	1970	2400	2200	2400
	W/mm	750	750	860	900	1100	1600	1600
	H/mm	1460	1460	1560	1700	1900	2000	2100
1、The refrigeration capacity is determined based on the following conditions: cold air inlet temperature of 12 ℃,cold air outlet temperature of 7 ℃, condensation inlet temperature of 35 ℃, and condensation outlet temperature of 40 ℃; 2、The air-cooled unit must be installed in a well ventilated area (outdoor or rooftop), while ensuring good ventilation without obstruction; 3、Control system Chinese interface digital series control system; Customized as a programmable PLC system, it can all come with RS485 communication; 4、This equipment is designed, manufactured, tested, and accepted as a steam compression cycle cold air equipment for industrial or commercial similar purposes; 5、The client exit method can be circular or square, and the external pipeline is provided by the customer; 6、For more detailed parameters, please call 86-0769-85615983 or contact the Huaxiang dealer.

Parameters / Model		HX-01SF	HX-02SF	HX-03SF	HX-04SF	HX-05SF	HX-07SF	HX-10SF
Cooling capacity	KW	3.2	6.4	9.6	12.8	16	22.4	32
Temperature range	3℃－Room temperature(Below 0 ℃ can be customized
Power supply	Voilt	1N-220V 50Hz/60Hz			3N-380V/415V 50Hz/60Hz
Refrigerant	R	R22/R407C/R410A/134A
Total input power	KW	0.94	1.73	2.57	3.48	4.31	7.65	9.9
Compressor power	KW	0.75	1.5	2.2	3	3.75	6	7.5
Cold wind	m³/h	180	280	370	510	800	1560	2300
Cold wind pressure	Pa	125	340	340	520	520	780	890
Fan power	KW	0.045	0.09	0.09	0.2	0.2	0.75	1.5
cooling water pipe diameter	DN	16			20		32
cooling water flow	m3/h	0.5	1.0	1.6	2.5	3.0	4.2	6.2
Diameter wind	MM	Φ76	Φ90	Φ100	Φ100	Φ125	Φ160	Φ159
Machine size	L/mm	680	680	900	950	950	950	1550
	W/mm	420	420	500	600	600	600	700
	H/mm	720	720	800	1000	1000	1000	1360
Parameters Model		HX-12SF	HX-15SF	HX-20SF	HX-25SF	HX-30SF	HX-40SF	HX-50SF
Cooling capacity	KW	38.4	44.8	64	76.8	96	128	160
Temperature range	3℃－Room temperature(Below 0 ℃ can be customized
Power supply	3N-380V/415V 50Hz/60Hz
Refrigerant	R22/R407C/R410A/134A
Total input power	KW	11.4	13.7	18.8	22.59	28	36	46
Compressor power	KW	9	11	15	18.75	22	30	40
Cold wind	m³/h	2750	3360	4100	4400	5400	6900	7500
Cold wind pressure	Pa	1000	1000	1000	1000	1000	1000	1000
cooling water pipe diameter	KW	40		50		65		80
cooling water flow	m³/h	7.2	8.5	12	13	18	24	30
Fan power	KW	0.9	1.2	1.6	1.64	2.4	3.6	4
Diameter wind	MM	Φ159	Φ159	Φ200	Φ200	Φ250	Φ300	Φ300
Machine size	L/mm	1550	1550	1700	1700	1650	2400	2400
	W/mm	700	700	750	750	910	955	955
	H/mm	1360	1360	1510	1510	1600	1640	1640
1、The refrigeration capacity is determined based on the following conditions: the inlet temperature of the cold air is 12 ℃, the outlet temperature of the cold air is 7 ℃, the inlet temperature of the condensate is 30 ℃, and the outlet temperature of the condensate is 35 ℃; 2、The water-cooled unit must be installed in a well ventilated place (indoor or machine room), while ensuring good ventilation without obstruction; 3、Control system Chinese interface digital series control system; Customized as a programmable PLC system, it can all come with RS485 communication; 4、This equipment is designed, manufactured, tested, and accepted as a steam compression cycle cold air equipment for industrial or commercial similar purposes; 5、The client exit method can be circular or square, and the external pipeline is provided by the customer; 6、For more detailed parameters, please call 86-0769-85615983 or contact the Huaxiang dealer.

• The following instructions should be read carefully before the unit is installed to avoid unnecessary damage.

• The unit should be kept as level as possible when handling and moving, never tilted more than 30 degrees, and there should be support rods on all spreaders to avoid injuring the equipment.

• The unit can be installed on the roof or outdoor patio, and the supporting surface must be strong enough; it can withstand the weight of the unit during operation.

• The unit should not be installed in dusty, dirty, corrosive gas and humidity.

• The installation of the unit should leave enough space of more than 1.5 meters in front, back, left and right for heat dissipation and easy access for maintenance personnel.

• The set in place, should be shockproof cushion placed under the set of bottom frame, adjust the level of the set before tightening the foot screws and ambrose.

• System plumbing installation, insulation, should be designed by professionals to guide, and the implementation of the corresponding provisions of the HVAC installation specifications.

• External water piping system must be installed anti-vibration soft joints, filters, check valves, drain valves, exhaust valves, shut-off valves; such as expansion tanks should be installed above the highest part of the system 1-1.5 meters; tank capacity of about the entire system of water / 10: Exhaust valves should be installed in the highest part of the system between the expansion tanks; chilled water piping system and expansion tanks should be made thermal insulation.

• Water pumps and units, water pumps and system water piping should be connected using shockproof flexible joints, while the piping and pumps should be self-supporting brackets to avoid unit stress.

• In order to prevent welding slag and other foreign objects from entering the evaporator and causing damage to the heat exchanger tube, we are required to install a water filter of more than 16 mesh at the evaporator inlet of the unit (or at the tank refill inlet). System water pipeline flushing and insulation should be carried out before connecting with the unit, it is strictly prohibited to connect the pipeline with the unit before it is flushed clean, and lightning protection should be considered according to the height of the actual installation location of the unit.

Instructions for use

Before the user starts the machine for the first time, please read the instruction manual of the product carefully and operate the machine according to the steps stipulated in the instruction manual to ensure the safety; meanwhile, it is recommended to start the machine for the first time under the guidance of the company's commissioning engineers.

The following work must be done before starting operation

• Connect all the power supply cables and external power supply control equipment according to the requirements.

• Check the water source of water tank or expansion tank, open the exhaust valve, exhaust the air in the channel; check whether the compressor and fan or water pump running direction is correct.

• The unit will be energized in order to warm up the lubricating oil (especially in cold areas, the time is not less than 12 hours)

In case of air-conditioning system, check whether the terminal equipment operates normally.

• In the case of the main circuit power failure, carry out a test run to check whether the sequence of action is normal; check whether the compressor and fan or pump group running in the right direction

• Set industrial refrigeration (or heat pump) operation mode as needed.

After the completion of the above work, you can turn on the main power and open the chiller or air-conditioning system for the host; to be the water temperature to meet the requirements of the normal unit once the debugging is completed and put into normal operation, you must keep its power supply phase sequence unchanged.

Maintenance

• The unit has been adjusted by the company's commissioning engineers, has reached the best working condition, please do not self-adjustment.

• The unit must clean the filter at the water inlet end of the pump after 24 hours of trial operation.

Frequent operation of the switch is strictly prohibited, the number of compressor start-up shall not exceed 6 times / hour. And the interval between each start-up operation should be more than 5 minutes.

• The main circuit power switch can not be disconnected during normal use.

• The whole machine should be checked once a month, the items are:

1, electrical terminals solid bolts have no loosening.

2, the set of moving parts have no noise, whether the operation is normal.

3, each motor running current is normal, insulation resistance is normal.

• The heat exchanger of the unit should be cleaned at least twice a year with special cleaning liquid or high-pressure water to maintain good heat exchange effect.

• If the heat pump unit is turned on in winter, please pay special attention to: the temperature is below 0°C to check the circulating water insulation effect regularly. And can not cut off the unit inlet power; long-term shutdown when not in use, the water side of the heat exchanger and the system piping must be drained to avoid pipe freezing.

• The unit should be operated and managed by specialized personnel, and should be shut down in time to find out the reasons and troubleshooting when abnormal conditions are found. It is strictly prohibited to run with disease.

• If you encounter any difficulties that can not be solved, please feel free to contact the company's customer service center. Warning: In order to ensure the normal use of your unit, please follow the following tips during the use of (winter, spring): 1. Frequent shutdown, the unit's main power switch and the single-pole air switch in the electronic control box must be kept closed and energized.

2. When the ambient temperature is low, the water temperature is correspondingly low and there is a danger of freezing, the unit will automatically start the anti-freezing program to prevent the occurrence of the accident, but at this time, if you turn off the water pump and the unit power supply, then the anti-freezing program fails, the water temperature will continue to fall to the point that the water system is frozen or even frozen heat exchanger pipe, etc. In order to avoid such accidents, please you must do the following two:

1, the water pump must be linked with the unit, the unit to control the start and stop of the water pump, rather than manual control.

2, the pump and unit main circuit and control loop must be kept energized, if you can not keep the energized state. It is necessary to release the water in the water system in time.

The company's products in the installation and commissioning, if the user needs, can first communicate with the company's technical staff to confirm the site service.

Our company follows the principle of continuous product improvement, it may be difficult to notify you of some improvements and changes in product specifications, performance and materials, please understand.
